Aluminum Composite Panels for Cladding & Signage

Factory direct supply of PE, PVDF, and fire-rated Aluminum Composite Panels with custom sizes, colors, and export support.

Structure & Specifications

Standard Aluminum Composite Panel Structure

Aluminum Composite Panel is composed of coated aluminum skins bonded to a polyethylene or fire-retardant mineral core, providing flatness, rigidity and reliable processing performance for architectural and signage applications.

Aluminum Composite Panel layered structure diagram showing coating, aluminum skin and core material

Common Aluminum Composite Panel Parameters

Typical specifications can be customized according to project requirements.

Panel Thickness
2mm, 3mm, 4mm, 5mm, 6mm, and project-based custom thickness options
Aluminum Skin
0.05mm - 0.50mm, depending on panel thickness and application
Standard Width
1000mm / 1220mm / 1250mm / 1500mm / 1525mm / 1550mm / 1575mm / 2000mm
Panel Length
2440mm / 3050mm / 3200mm / 3660mm / 4880mm / 5000mm / 6000mm, custom length up to 11500mm
Core Material
LDPE core, B1 fire-retardant core, and selected A2 mineral core options
Coating System
PE coating, PVDF coating, FEVE coating
Surface Finish

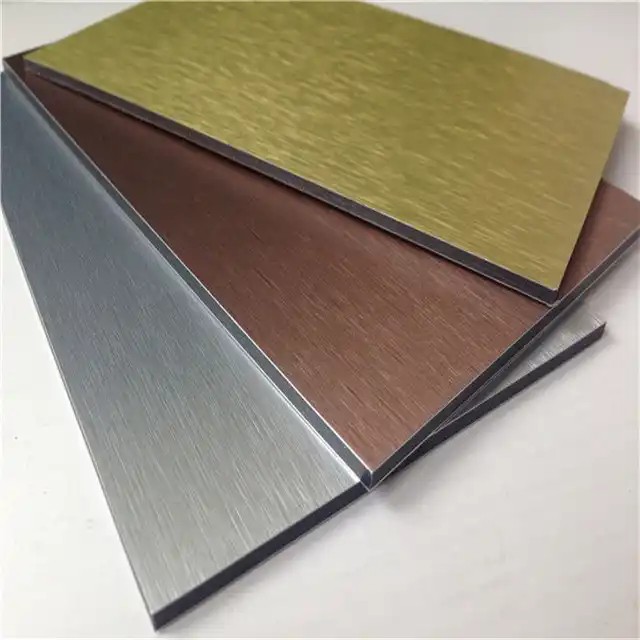

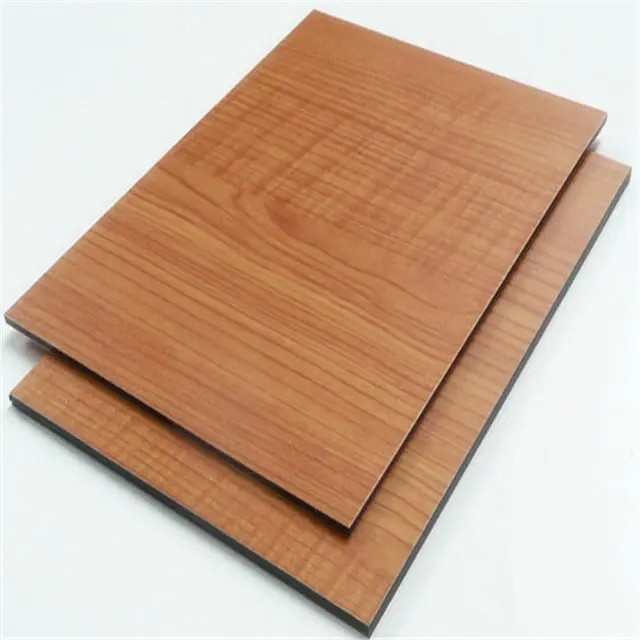

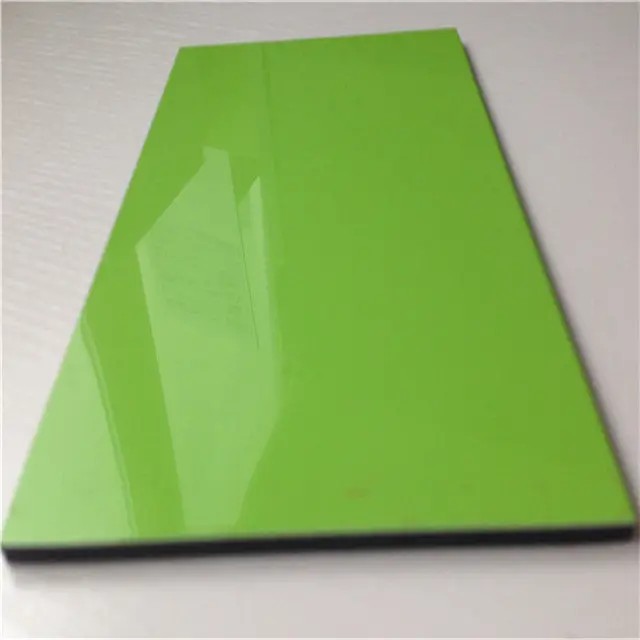

Solid color, metallic, wood grain, stone, mirror, brushed
Applications

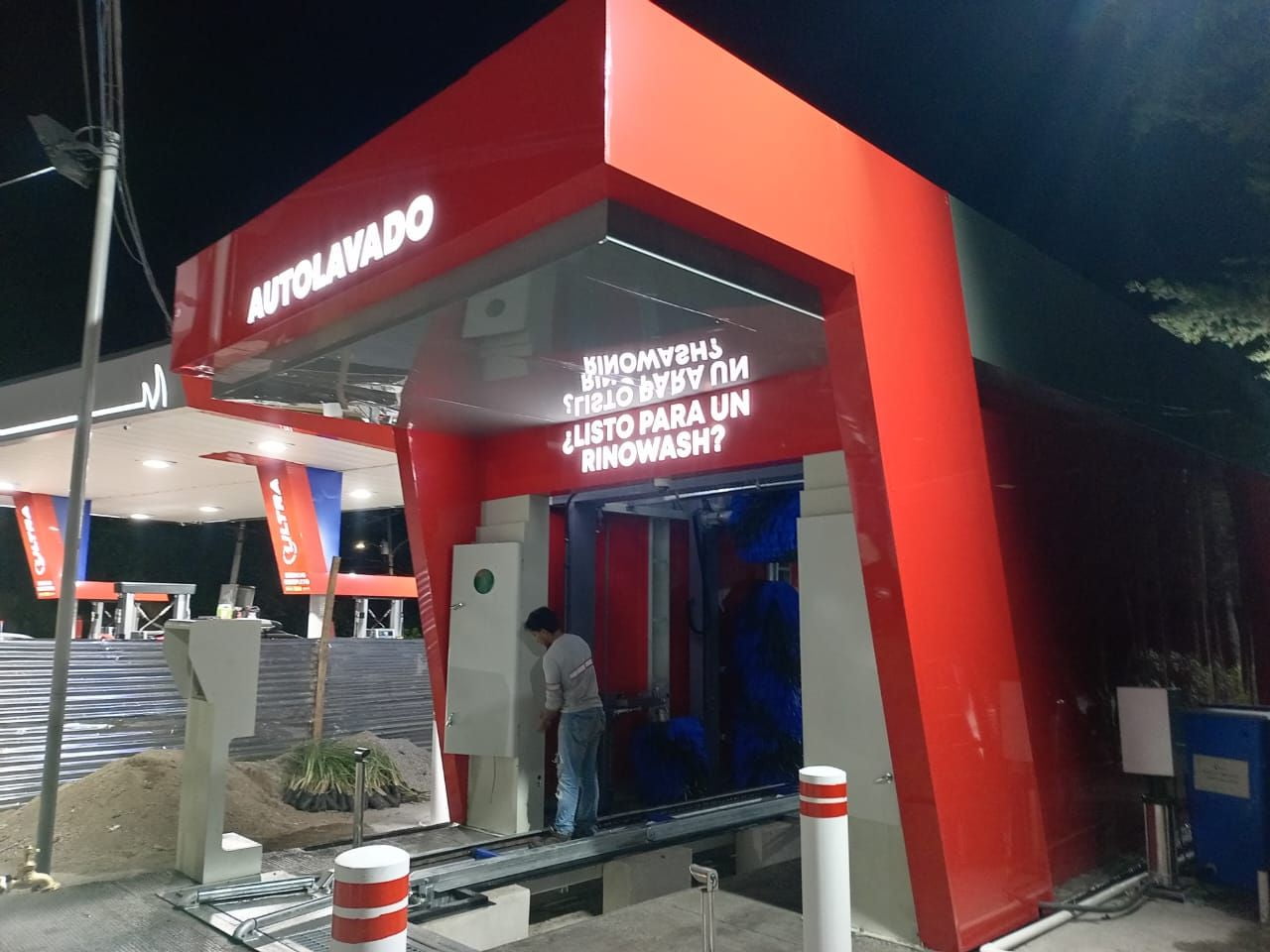

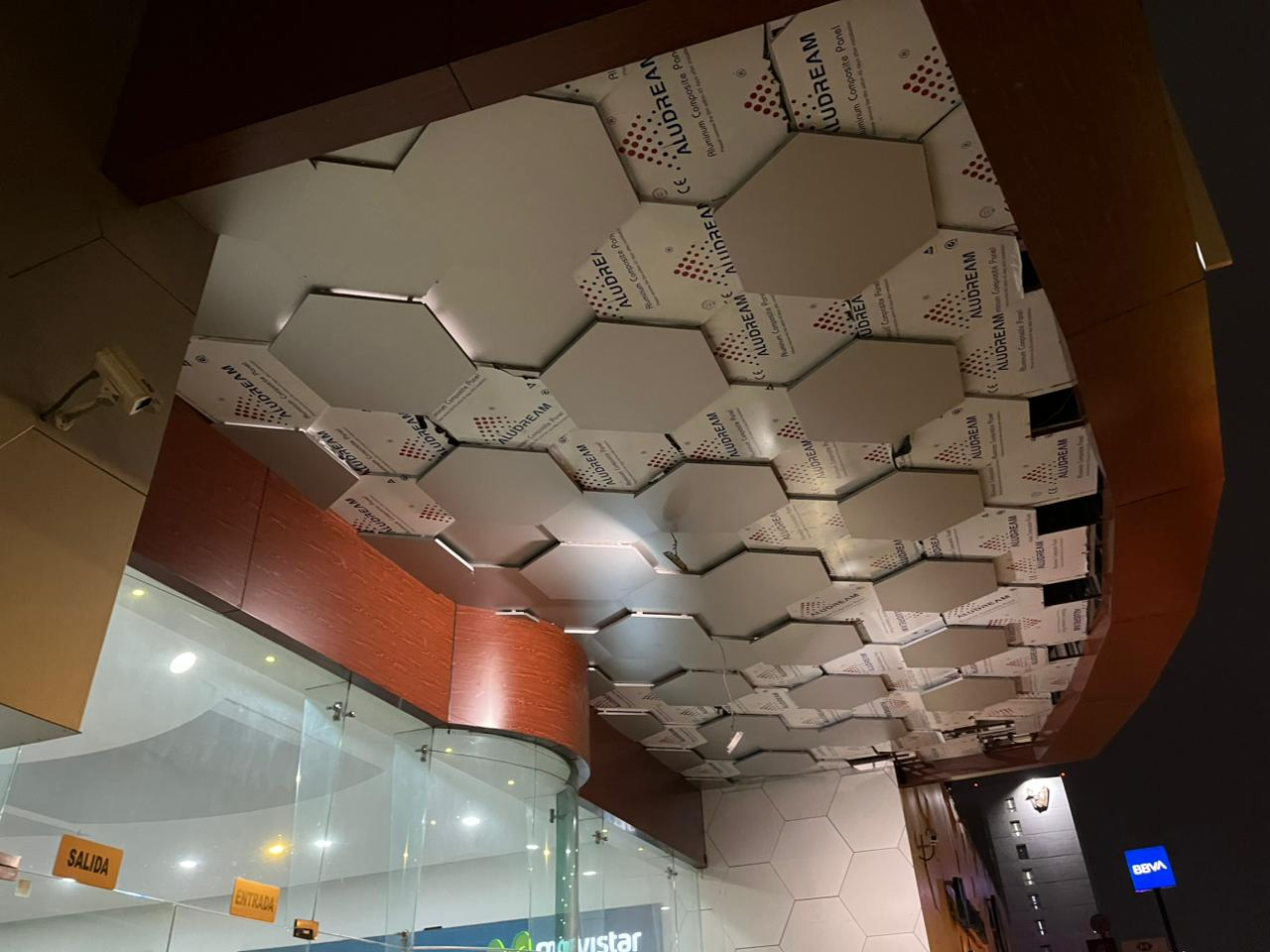

Facade cladding, signage, interior decoration, canopy systems

Frequently Asked Questions

Quick answers for distributors, signage companies and project buyers.

MOQ

What is your MOQ for Aluminum Composite Panel products?

The standard MOQ for regular colors is typically 300 sqm or 100 sheets per color. MOQ for custom colors, finishes, or specifications depends on the order details.

Samples

Can I get free Aluminum Composite Panel samples?

Sample pieces are available for color and quality confirmation. Sample availability and courier arrangements can be confirmed based on your request; freight is usually collected.

Customization

Can you customize colors and specifications?

We support RAL, Pantone, custom sizes, and OEM options.

Certifications

What certifications do your Aluminum Composite Panel products have?

Supporting certification documents and test reports are available depending on product type and project requirements.

Lead Time

What is the typical lead time?

Standard orders are typically completed within 15–20 days after specification and color confirmation. Custom colors, special finishes, or large project orders may require additional production time.

Shipping

Do you support DDP shipping?

DDP service may be available for selected countries depending on destination and order requirements.

Factory Quotation

Request Aluminum Composite Panel Pricing

Tell us your required panel thickness, aluminum skin, size, color, quantity, and application. Our team will recommend a suitable specification and prepare a factory quotation.

PE, PVDF and fire-rated panel options
Custom RAL, Pantone, sizes and finishes
MOQ from 300 sqm or 100 sheets for regular colors
Samples, OEM and export support available
Helpful details: application, destination country, panel size, thickness, aluminum skin, color and estimated quantity.
